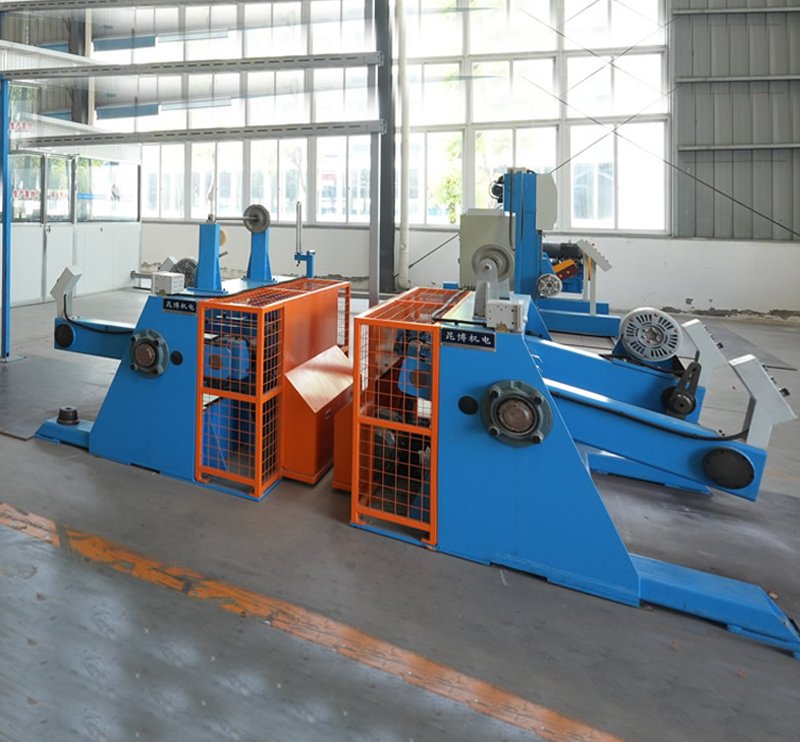

The main features of the 630-1250 single-station shaftless pay-off machine are as follows:
1. Structural characteristics
The end-shaft structure is adopted, and the frame is formed by bending and welding. The two ends of the wire reel are lifted and lowered by two independent motors through a cycloidal reducer to drive the screw nut, which can be operated separately or simultaneously. The clamping device also adopts a dual-motor drive design to ensure dual mechanical and electrical protection.
2. Scope of application
The diameter range of the supported wire reel is 630-1250mm, and the cable diameter can reach Φ3-Φ60mm (maximum value). The adaptation standards include international general standards such as GB4004-84, DIN46391/46395.
3. Power configuration
The power of the lifting motor is 0.75kW, and the power of the clamping disc motor is also 0.75kW, both of which are equipped with a cycloidal pinwheel reducer.
4. Safety
Equipped with dual mechanical and electrical protection devices to ensure safe operation.
This equipment is produced by Changzhou Kunbo Electromechanical Technology. Since its establishment in 2008, it has formed a professional team and its products are widely used in the field of wire and cable manufacturing.
